PLASTICWELD HPD-6 TUBE DRILLER

PlasticWeld’s HPD-6 table-top fully programmable drilling system with slug ejection and capture. This single spindle drill places holes along a 6 inch segment and the program allows virtually unlimited number of holes with varying spacing and rotation. Designed for maximum flexibility for clean room use.

Features

·       Semi-automatic operation: operator loads the catheter and actuates the program via double finger buttons. Once all holes are drilled, operator removes the catheter.

·       Standard hole pattern length is 6 inches, others available upon request

·       110 VAC 50/60 Hz, 15 amp electrical power requirement

·       80 psi (minimum) clean, compressed air supply required

·       Omron PLC with operator touch pad for programming and data entry. Custom programming available

·       Oriental Motors linear actuators for precise distance and speed control

·       Proprietary tube-size-specific collet design securely holds and rotates catheter tubing for tight tolerance requirements


1584002893623141tjJZ.jpg1583998195570257tqwO.png   image.png1583998154108648onZP.png15839981618801762tjG.png

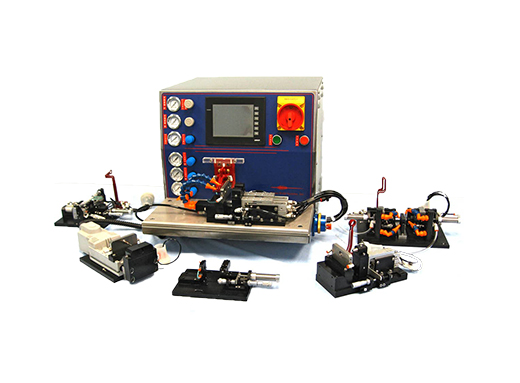

PLASTICWELD SYSTEMS HPS10-MXP

To meet the growing market need for a scalable and multi-functional catheter production system, PlasticWeld Systems developed the HPS10-MXP multi-function interchangeable platform system. This system utilizes interchangeable tool pallets, quick-change electronic & pneumatic connectors and on-board programming to provide the most versatile bench top equipment available. Users are able to quickly change between pneumatic or electric slide tipping, flaring, flanging, eye forming, tube bonding and end forming – utilizing the same base machine. Most tool pallets are scalable with a choice of 1-up or 2-up configurations. This format is especially suited to lean production work cells, R&D departments and small batch production environments.

Benefits

·       Open system design which allows for you to design and manufacture your own molds

·       Flexible system allows for changing molds, heater coils and heater position. Ideal for R&D engineers trying to test new concepts.


·       Ideal for long length dilators and large diameter applications


Features

·       Interchangeable tool pallet system

·       Base machine is pre-wired to accept all tooling platforms.

·       Quick change plate mounts, pneumatic and electric connections enable 5 minute change over between any two pallets.

·       PLC and Color Touch-screen Operator Interface control all mechanical functions and provide program storage.

·       0-100% step-less power, heat On/Off and diagnostic functions are all controlled through the Operator Interface Panel.

·       Programmable multi-level heating cycles.

·       Constant current control within ± 0.5% of a 10% line voltage variation.

·       Easy clean Stainless Steel Cabinet with integrated work platform.

·       Precision pneumatic regulators.

·       Water cooled coil and tool holder.

·       Simple adjustment for correct coil placement.

·       Cycle initiation by panel push button or foot pedal switch.

·       PlasticWeld Systems RF Transistorized Solid State induction heating unit, HPS-10, rated at 1.0 kw, 110/120 volt 50/60hz, 1 phase; operates at a set frequency between 50 and 100 kHz

·       Self-contained re-circulating ambient air liquid cooler

·       PWS standard program, with 20 data-set storage capacity and no security lock-out codes. Customized programming available.50 and 100 kHz

·       Self-contained re-circulating ambient air liquid cooler

·       PWS standard program, with 20 data-set storage capacity and no security lock-out codes.

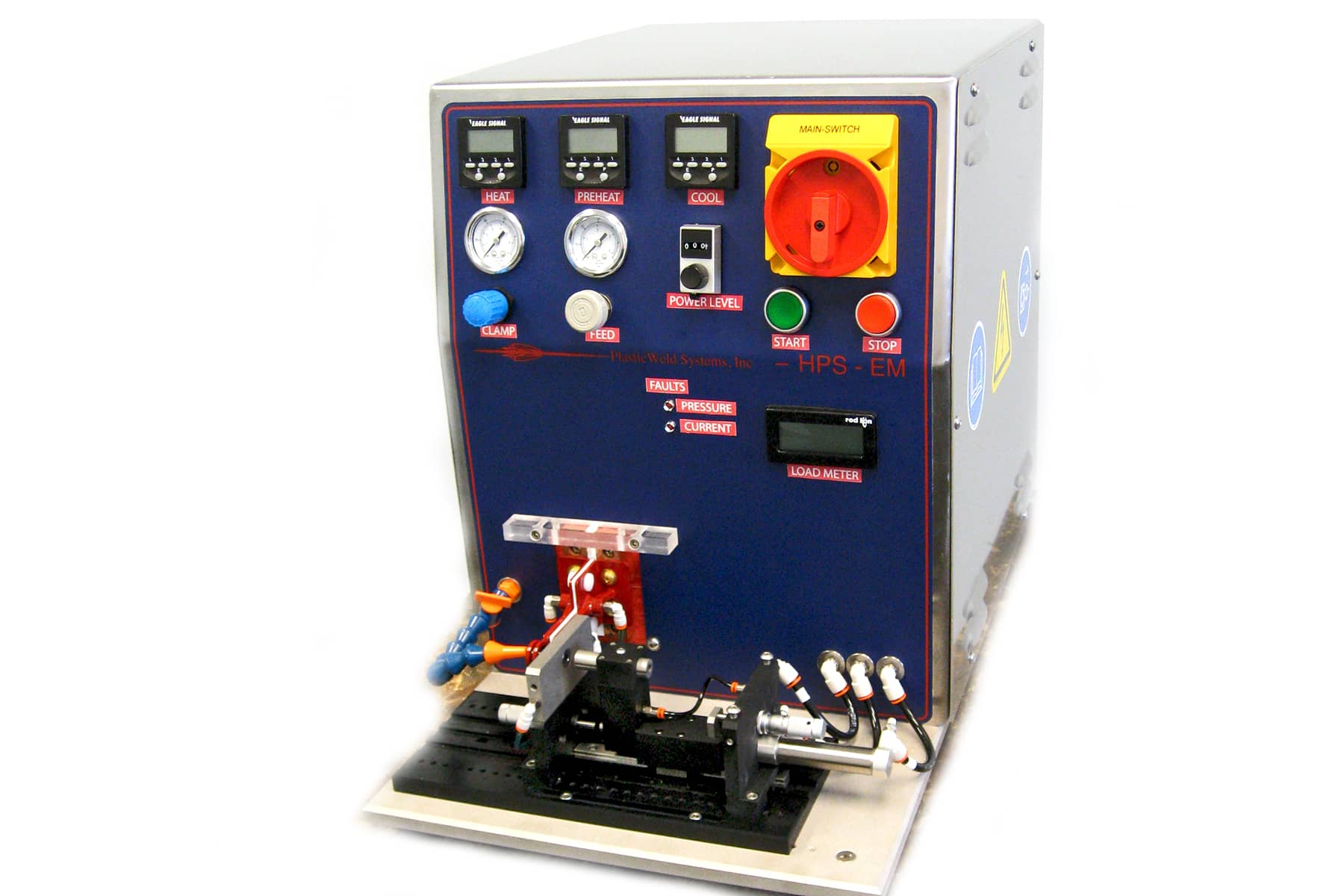

PLASTICWELD SYSTEMS HPS-EM

PlasticWeld’s HPS-EM tip forming system utilizes a 500 watt power supply paired with a precisely controlled pneumatic actuator to provide exceptional, consistent results for 1-up tip forming or simple flaring. The machine handles a wide range of tube sizes. Digital timers and dial potentiometer provide accurate control of the process parameters.

Benefits

·       Open system design which allows for you to design and manufacture your own molds

·       Flexible system allows for changing molds, heater coils and heater position. Ideal for R&D engineers trying to test new concepts.

·       Ideal for long length dilators and large diameter applications


Features

·       Low friction pneumatic slide, adjustable forward and return speed, distance control and pneumatic pressure.

·       Collet clamping of tube with adjustable clamp pressure.


·       Individual digital timers for pre-heat, heat and cooling time control

·       Dial potentiometer control of heat

·       LCD display of power supply output (volts)

·       Load matching transformer & capacitors.

·       Easy clean Stainless Steel Cabinet with integrated work platform.

·       Precision pneumatic regulators.

·       Water cooled coil and tool holder.

·       Air cooling of dies.

·       Simple adjustment for correct coil placement.

·       Micrometer stop adjustment for slide travel

·       Cycle initiation by panel push button or foot pedal switch.

·       PlasticWeld Systems RF Transistorized Solid State HPS05 induction heating unit, 110/120 or 220/240 volt 50/60hz, 1 phase; operates at a set frequency between 50 and 100 kHz

·       Self-contained re-circulating ambient air liquid cooler

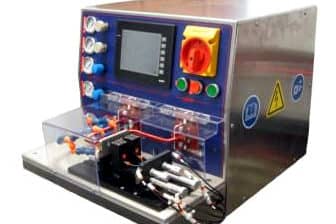

PLASTICWELD SYSTEMS HPS-05 DB

PlasticWeld’s HPS05-DB 2-up polished eye former was originally developed for the urinary drainage catheter market, where smooth-edged eyes are a critical performance feature. A proprietary actuator system provides precise control of the eyelet-forming punches, and is adaptable from 5 Fr up to 22Fr tube sizes.

PlasticWeld’s HPS05-DB tip forming systems utilizes a 500 watt power supply paired with precisely controlled pneumatic actuators to provide exceptional, consistent results for economical 1-up or 2-up tip forming or simple flaring. The machine handles a wide range of tube sizes. Multiple options are available customize the operation and functionality of the system.

Features

·       Machine can be configured to produce one or two tubes with each cycle, and can punch up to two (2) eyes on each tube – oriented 180 degrees apart with minimum 0.5 inch offset along the length of the tube.

·       Low friction pneumatic slide(s), adjustable forward and return speed, distance control and pneumatic pressure.1584066340689099mVtf.jpg

·       PLC and Color Touch-screen Operator Interface control all mechanical functions and provide program storage.

·       0-100% step-less power, heat On/Off and diagnostic functions are all controlled through the Operator Interface Panel.

·       Programmable multi-level heating cycles.

·       Constant current control within ± 0.5% of a 10% line voltage variation.

·       Load matching transformer & capacitors.

·       Easy clean Stainless Steel Cabinet with integrated work platform.

·       High precision pneumatic regulators for eye punch slides.

·       Water cooled coil.
